Ultralight-Telescopic Ramps

From: £369.60 VAT Exempt

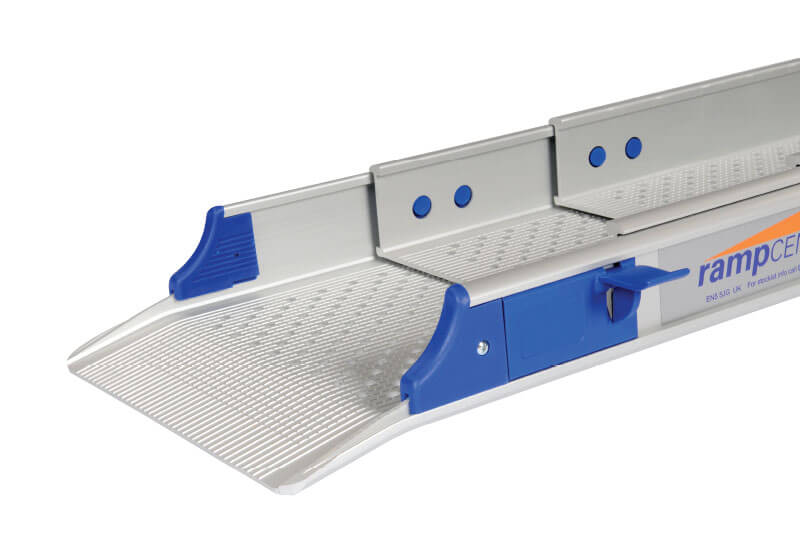

The most adjustable ramps in the range, up to 3 meters yet extremely compact for easy storage.

Exceptionally well crafted in anodised aluminium, the Ultralight channel ramps offer an outstanding combination of compact storage and ease of use

Description

THE MOST ADJUSTABLE RAMP IN THE RANGE, THESE RAMPS EXTEND UP TO NEARLY 3M, YET ARE EXTREMELY COMPACT FOR EASY STORAGE IN A VEHICLE. AVAILABLE IN 2 OR 3 SECTION VERSIONS TO SUIT YOUR STORAGE REQUIREMENTS.
Your benefits:
Versatile ramps that can be used at any length, even partly extended
Extremely compact storage
Ideal for vehicle access – long version great for 4×4’s
Uniquely high capacity and generous channel widths
Silent telescopic mechanism with strong safety clip to prevent opening when stored or carried
The two halves can be used at different lengths from each other – great for cross-slopes!

Code
(pair)
Length (Max)Length (Min)Width
(internal
channel)
Capacity
(pair)
Weight
(each half)
Stored Dimensions
L x W x D
(each half)
PT12-2120cm
(3’ 11”)
75cm
(2’ 5”)
19cm (8ins)400kg (63st)3.6kg (8lbs)75 x 24.5 x 6cm (29 x 10 x 2ins)
PT20-2202cm
(6’ 8”)
117cm
(3’ 10”)
19cm (8ins)300kg (47st)5.8kg (13lbs )117 x 24.5 x 6cm (46 x 10 x 2ins)
PT20-3199cm
(6’ 6”)
87cm
(2’ 10”)
18cm (7ins)300kg (47st)6.1kg (14lbs)87 x 24.5 x 7cm (31 x 10 x 3ins)
PT29-3288cm
(9’ 5”)
117cm
(3’ 10”)
18cm (7ins)250kg (39st)8.2kg (18lbs)117 x 24.5 x 7cm (46 x 9 x 3ins)

A Guide To Choosing The Correct Ramp

Finding The Correct Gradient

1:6 (10˚)Wessex Healthcare supplies quality mobility products and independent living aids to the less abled and disabledAcceptable in some cases for assisted access and powered wheelchairs
1:8 (8˚)Wessex Healthcare supplies quality mobility products and independent living aids to the less abled and disabledA good balance between gradient and space use, suited for events etc.
1:12 (5˚)Wessex Healthcare supplies quality mobility products and independent living aids to the less abled and disabledOften required by social services/local authorities. Minimum required Building Regs Doc M for installed ramps.
1:15 (4˚)Wessex Healthcare supplies quality mobility products and independent living aids to the less abled and disabledSometimes required by social services/local authorities for independent access.

Finding The Correct Length

STEP HEIGHT /
LEVEL DIFFERENCE (UP TO)
LENGTH AT 1:6LENGTH AT 1:8LENGTH AT 1:12
10cm (4″)60cm (2ft)80cm (2ft 8″)120cm (4ft)
15cm (6″)90cm (3ft)120cm (4ft)180cm (6ft)
20cm (8″)120cm (4ft)160cm (5ft 4″)240cm (8ft)
25cm ( 10″)150cm (5ft)200cm (6ft 8″)300cm (10ft)
30cm (1ft)180cm (6ft)240cm (8ft)360cm (12ft)
45cm (1ft 6″)270cm (9ft)360cm (12ft)540cm (18ft)
60cm (2ft)360cm (12ft)480cm (16ft)720cm (24ft)
