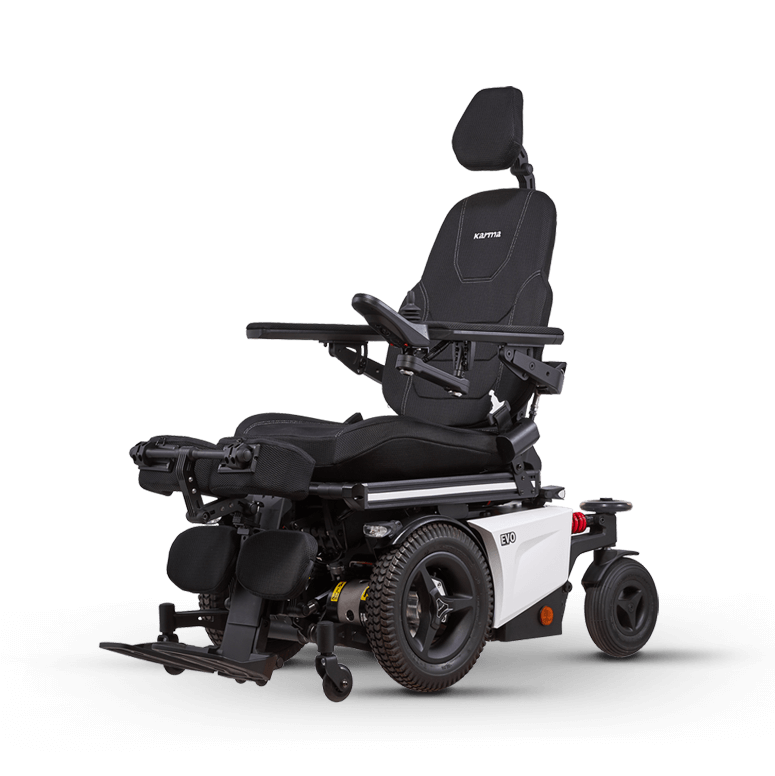

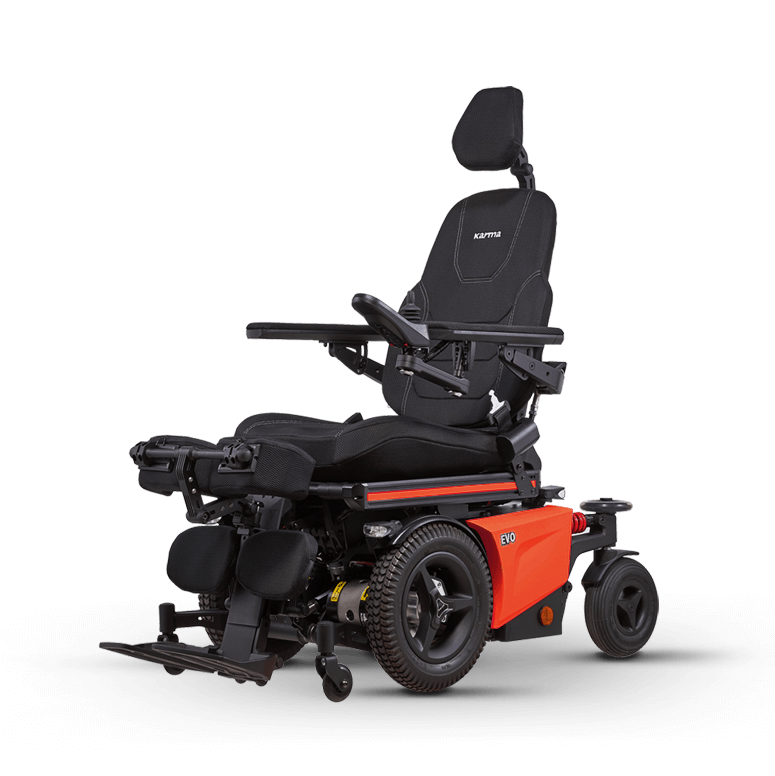

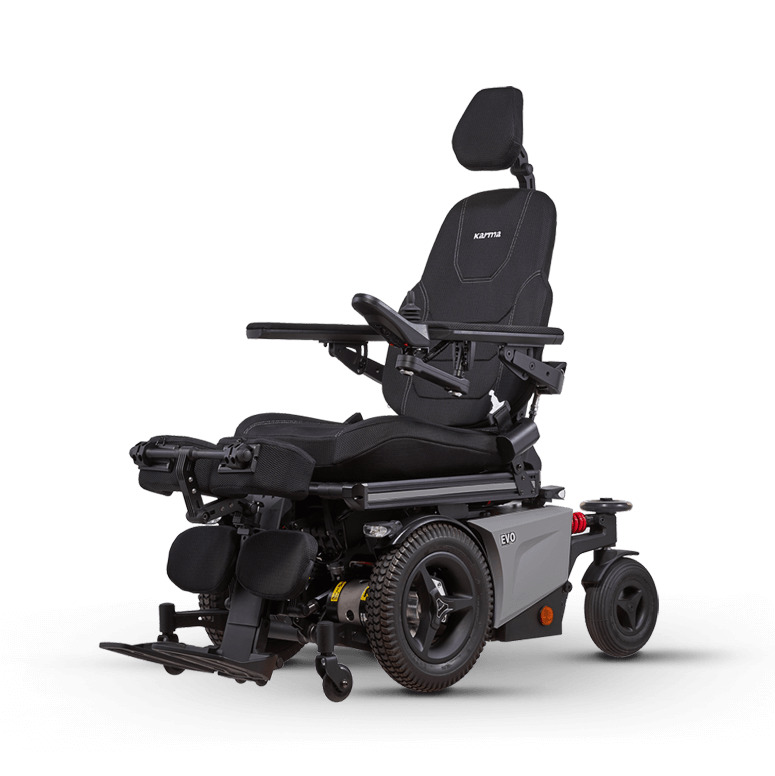

Karma Evo Altus Standing Powerchair.
A standing powerchair from sit to stand , lie to stand.
front wheel drive for accessibility.
many functions as standard
Prices from £ 21,575.00
This is a configurable powerchair and requires an assessment. Please contact us for a free no obligation demonstration and assessment.
Tel 02382 180 231
The Karma EVO Altus powered standing wheelchair is the ultimate in standing powered wheelchairs. Being able to stand up is an important step. The EVO Altus (EVO-ALT) is specially designed to help those who have the very limited body control to achieve this step. The chair provides not just one, but three different ways to stand up: sit-to-stand, recline-to-stand, and lie-to-stand. The standing modes along with other features are configurable to fit the user’s need and to help the user reach independence on wheels.

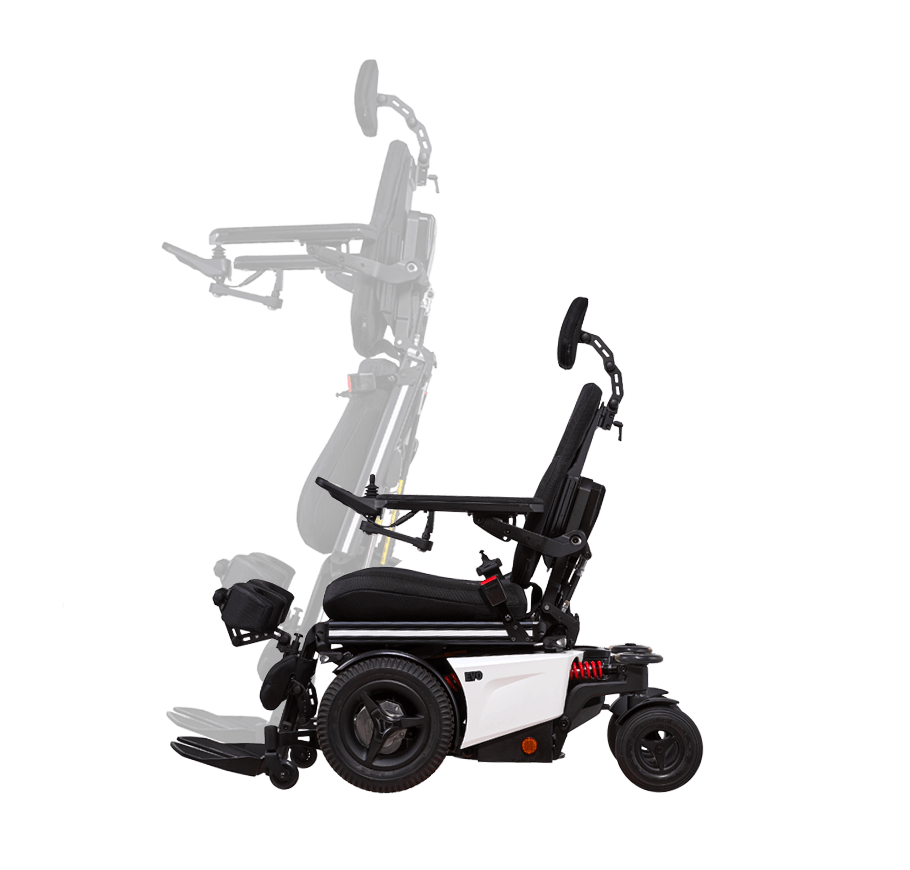

Sit-to-StandThis function allows the user to go from a sitting position to a standing position. This is the most natural way to stand up and does not take a lot of time and space. Users who have a normal range of joint motion as well as healthy blood circulation, will find this mode best suits their needs. |
 |

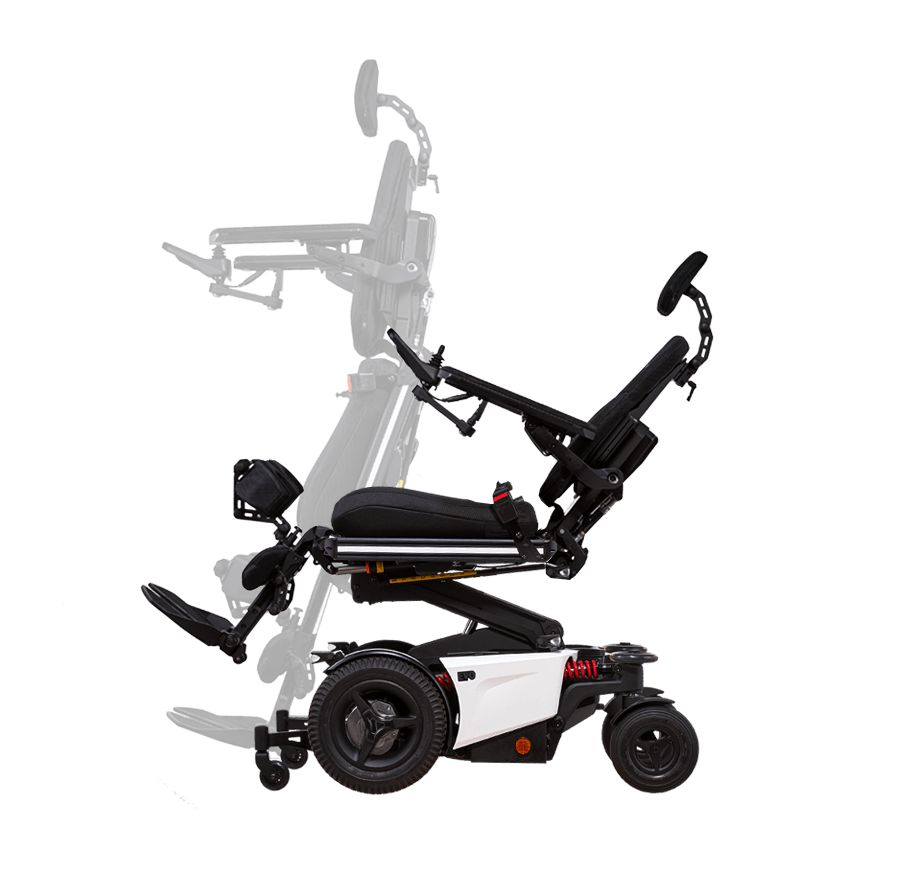

45° lay-to-StandThis function allows the user to go from a 45-degree recline to a standing position. This is useful for those who have a limited range of joint motion. Instead trying to sit up straight to stand up, the user can use the recline function and then go from a reclined position to a standing position. |
 |

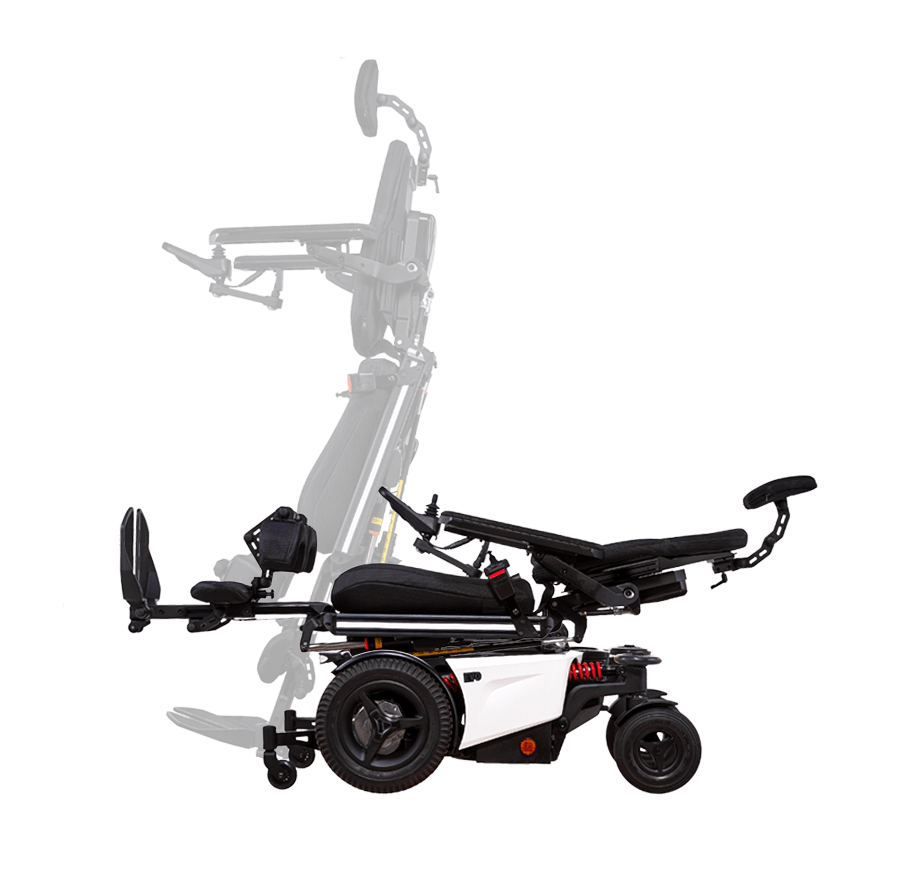

Lay-to-StandThis function allows the user to go from a supine position to a standing position. Standing from the supine position requires the least amount of body and joint movements. This function not only prevents lateral supports from being mispositioned but also gives users with intense postural hypotension the opportunity to stand like everyone else. |
 |
Easy to ConfigureSmall adjustments can mean huge improvements for the user’s well-being. When developing the EVO Altus, the primary focus was improving the ease of adjustment and maintenance. For example, service technicians can extend the seat depth without adding any additional components, such as linkage bars. |
 |
R-Net ControlThe R-Net-control system comes standard with the EVO Altus. Operate many electrical functions of the chair using the joystick. This system also serves as a platform for a wide variety of specialized steering controls such as chin control, head control and switch control. It even has the ability to operate infrared and Bluetooth devices using the joystick with R-Net controls. The things you can do with R-Net control are endless. |
 |
Crash Test ApprovedThe EVO Altus is approved for transportation in accordance with ISO 7176-19. This means it is suitable to be used as a seat in a motor vehicle for transportation. |
Crash Test video click here |
| Best in class Driving Range and Performance
Despite is low seat height the front wheel drive Evo chassis is compatible with up to 80 ampbatteries, which yield up to 54 km range |
Specification – Karma Evo Altus Standing Powerchair
| Product Model | Evo Altus | |
| Seating System | Minimum | Maximum |
| Nominal seat width (mm/in)* | 420 / 17 | 520 / 21 |
| Nominal seat depth (mm/in)** | 400 / 16 | 600 / 24 |
| Backrest height without cushion (mm) | 565 | 725 |
| Backrest height with cushion (mm) | 510 | 670 |
| Headrest height above seat (mm) | 730 | 890 |
| Armrest to seat distance without cushion (mm) |
250 | 370 |
| Armrest to seat distance with cushion (mm) | 180 | 300 |
| Front location of armrest structure (mm) |
0 | 410 |
| Seat surface height at front edge without cushion (mm) |
415 | 865 |
| Seat surface height at front edge with cushion (mm) |
490 | 940 |
| Footrest to seat distance without cushion (mm) |
255 | 555 |
| Footrest to seat distance with cushion (mm) | 330 | 630 |
| Effective seat width (mm) | 420 | 520 |
| Effective seat depth (mm) | 400 | 600 |
| Seat plane angle (X°) | 0 | 50 |
| Backrest angle (X°) | -5 | 90 |
| Seat to backrest angle (X°) | 85 | 180 |
| Leg to seat angle (X°) | 85 | 180 |
| Driving Characteristics | Minimum | Maximum |
| Drive wheel size | 3.00 – 8 (14″) | |
| Rear caster size | 2.80/2.50 – 4 (9″) | |
| Overall length with legrest (mm) | – | 1200 |
| Overall width (mm) | 610 | 660 |
| Overall height (mm) | 1115 | – |
| Folded length (mm) | 1150 | – |
| Folded width (mm) | 610 | – |
| Folded height (mm) | 650 | – |
| Total mass (kg) | – | 185 |
| Total mass without batteries (kg) | – | 143 |
| Mass of the heaviest part (kg) | – | 135 |
| Maximum user weight (kg) | – | 136 |
| Drive range (km)*** | – | 54 |
| Maximum speed forward (km) | – | 12 |
| Minimum braking distance from max speed (mm) |
2000 | – |
| Obstacle climbing (mm) | – | 70 |
| Ground clearance (mm) | 70 | – |
| Minimum turning radius (mm) | 750 | – |
| Minimum turning radius without user (mm) |
750 | – |
| Reversing width (mm) | 750 | – |
| Static stability downhill (X°) | 9 | |
| Static stability uphill (X°) | 9 | |
| Static stability sideways (X°) | 9 | |
| Dynamic stability uphill (X°) | 6 | |
| Ability to climb rated slope (X°)*** | 12 | |
| Electrical System | ||
| Motor power (W) | 320 | |
| Battery capacity (Ah) | 80*2 | |
| Charger output current (A) | 8 | |
| Battery Compartment (L x W x H) (mm) | 265 x 175 x 235 (Single Compartment) | |
Notes
Remark :
* Nominal seat width is measured the width of seat cushion at 120mm in front of the backrest.
This value is mainly used in the product ordering process.
** Nominal seat depth is measured from the front end of the seat cushion to the back cushion. This value is mainly used in the product ordering process.
*** Drive range/ Ability to climb rated slope are estimated based on the following conditions:
20℃~35℃, 140 kg occupant, brand new fully charged batteries and driving on the flat road.
– Evo Altus satisfies the requirements according to EN 12184 and the maximum occupant mass is 140 kg.
– The actual product specifications differ from the data in the table by ±1 cm ±0.5 kg.
– The actual product specifications may vary according to different configurations.
– KARMA reserves the right to modify information herein without further
notice.
